ABS Thread Repair Inserts for the FD Rx7 Cluster

LHD and RHD available at checkout:

3/5 Difficulty

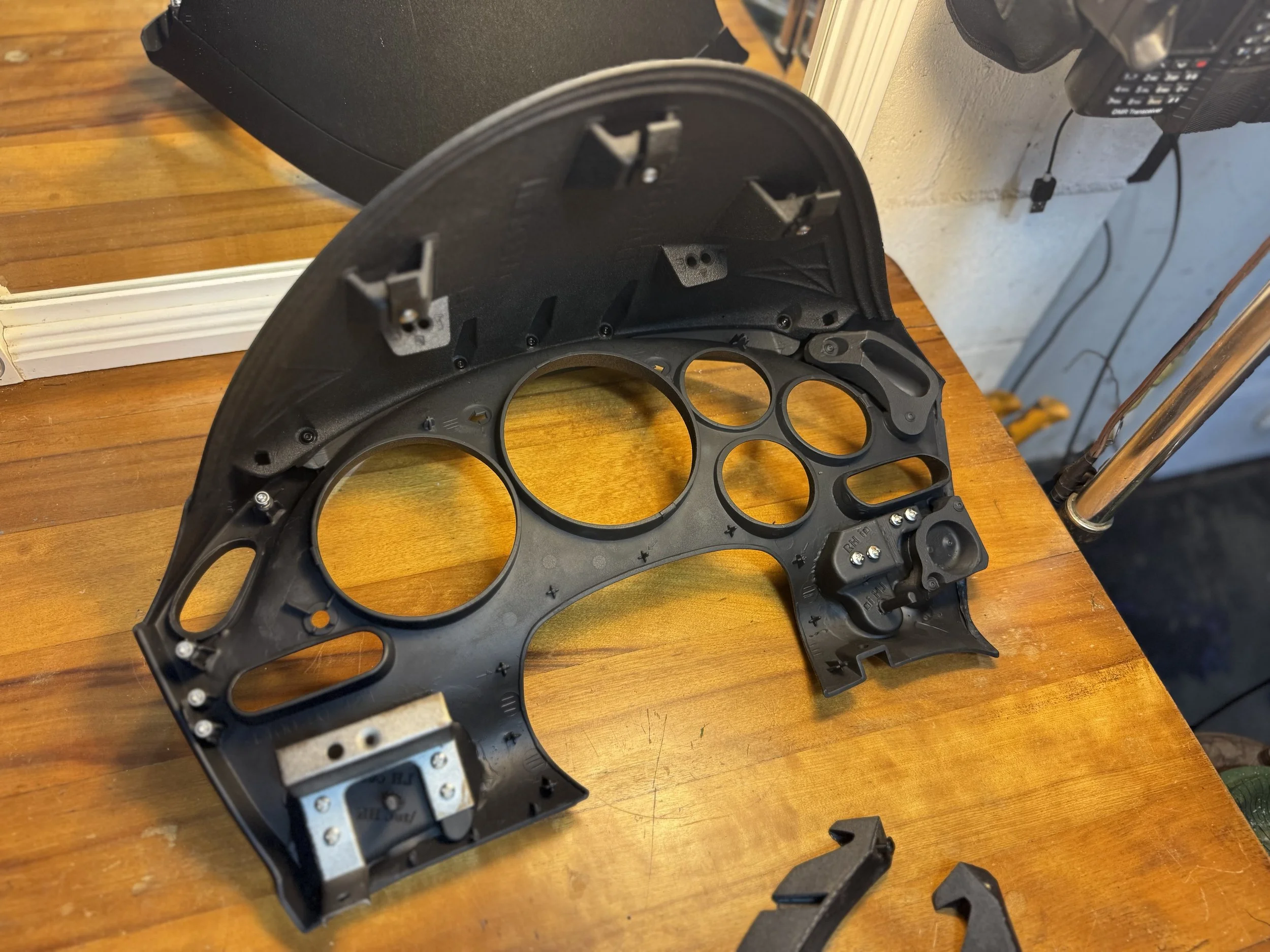

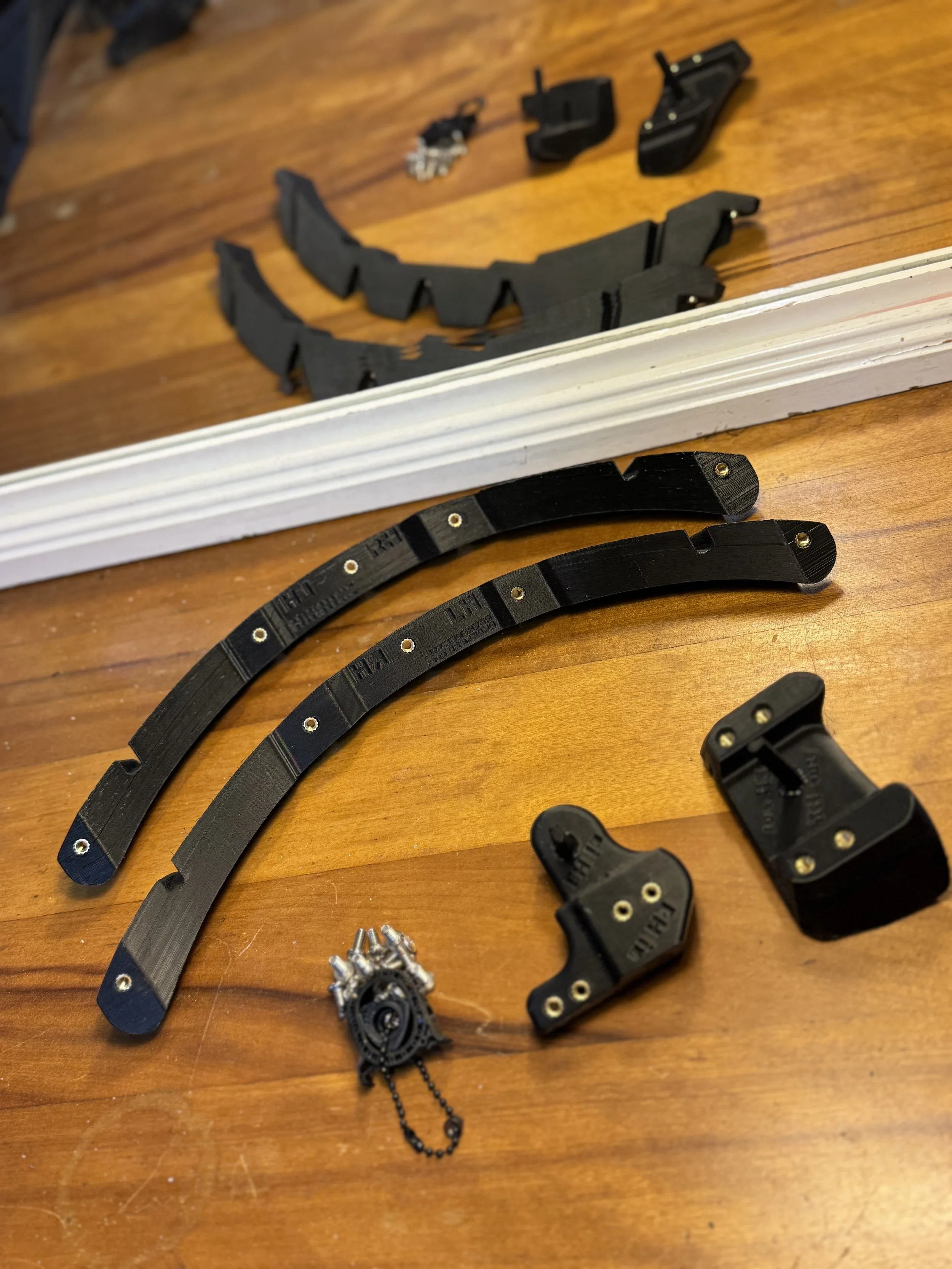

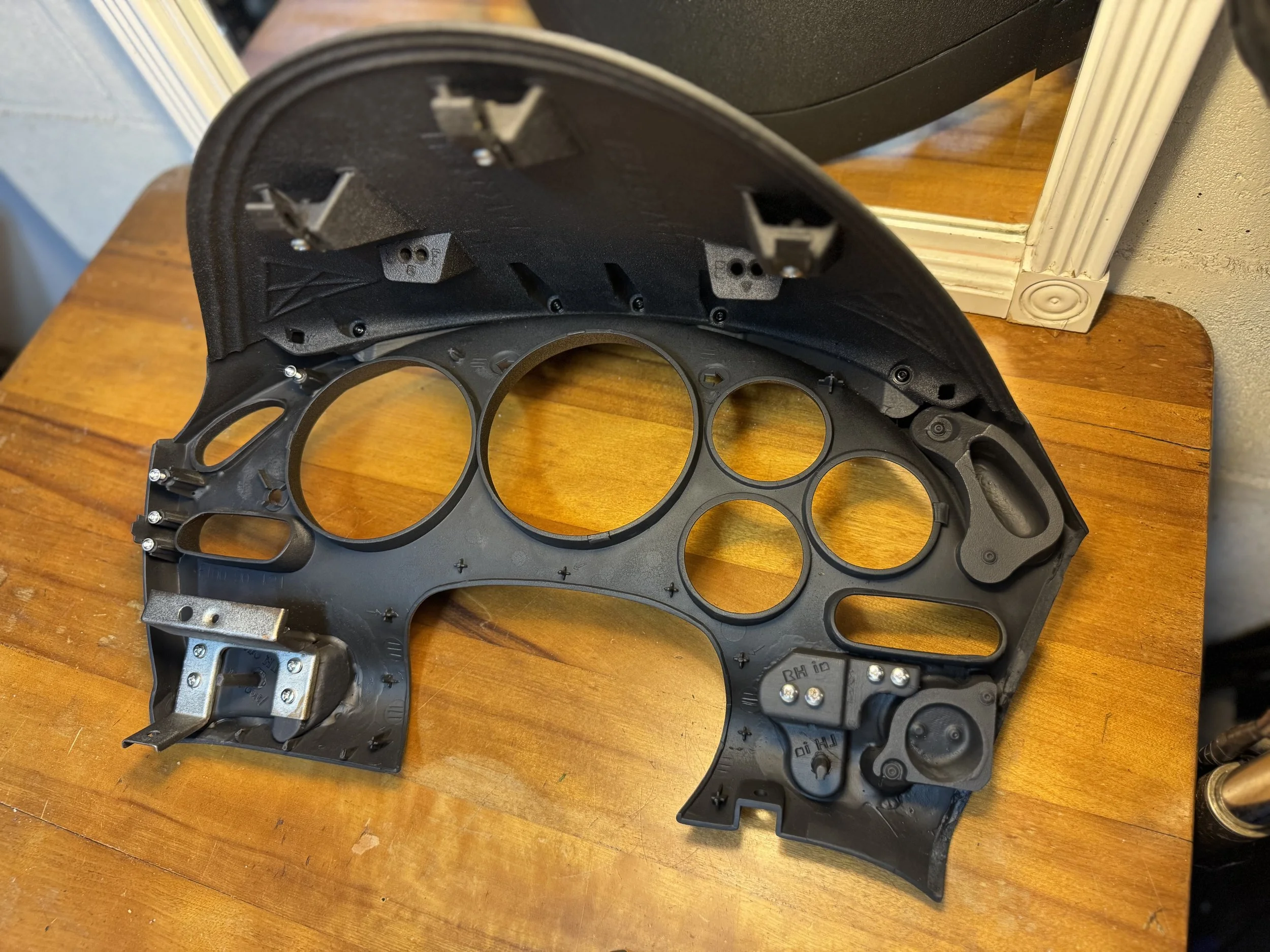

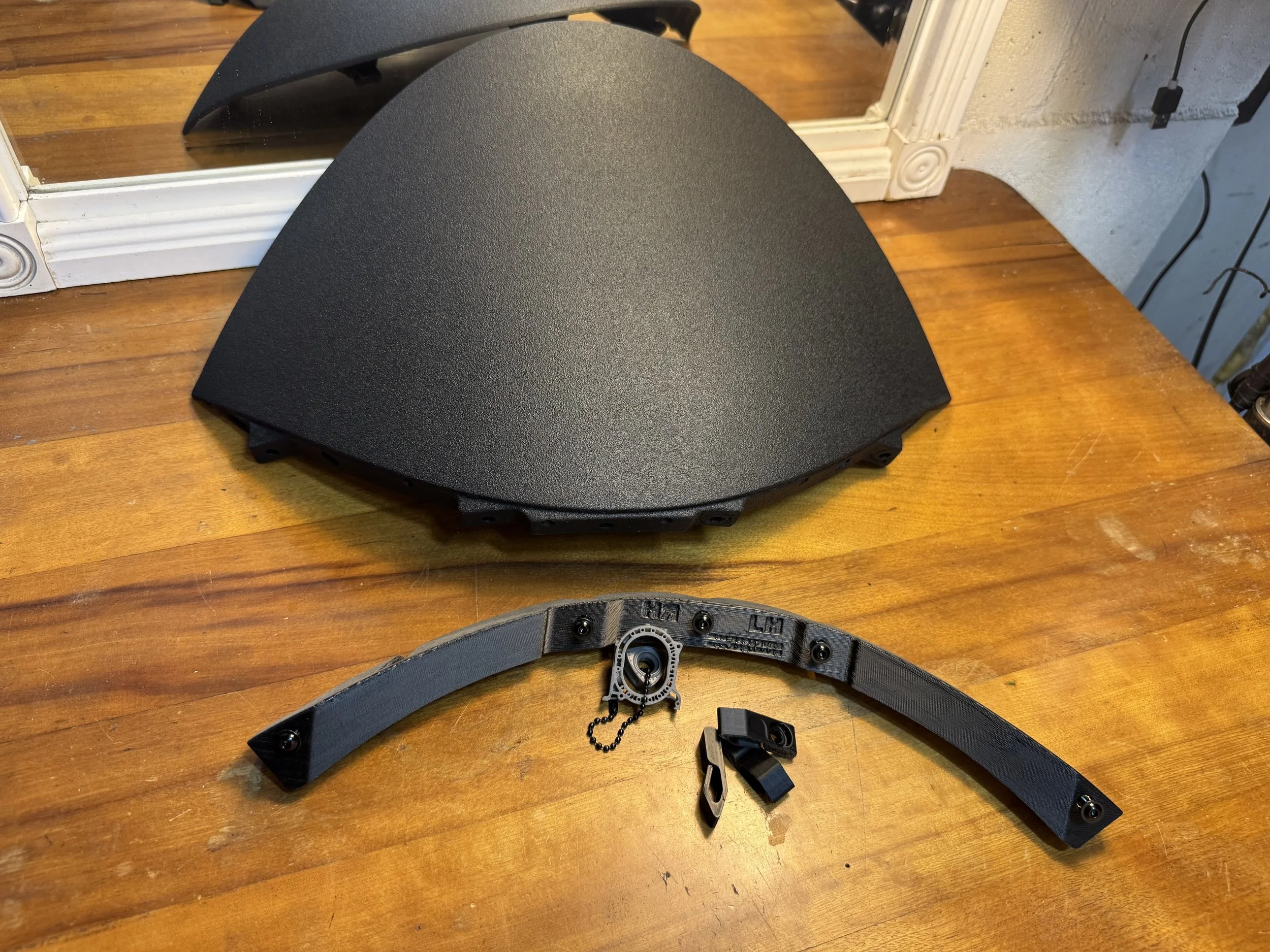

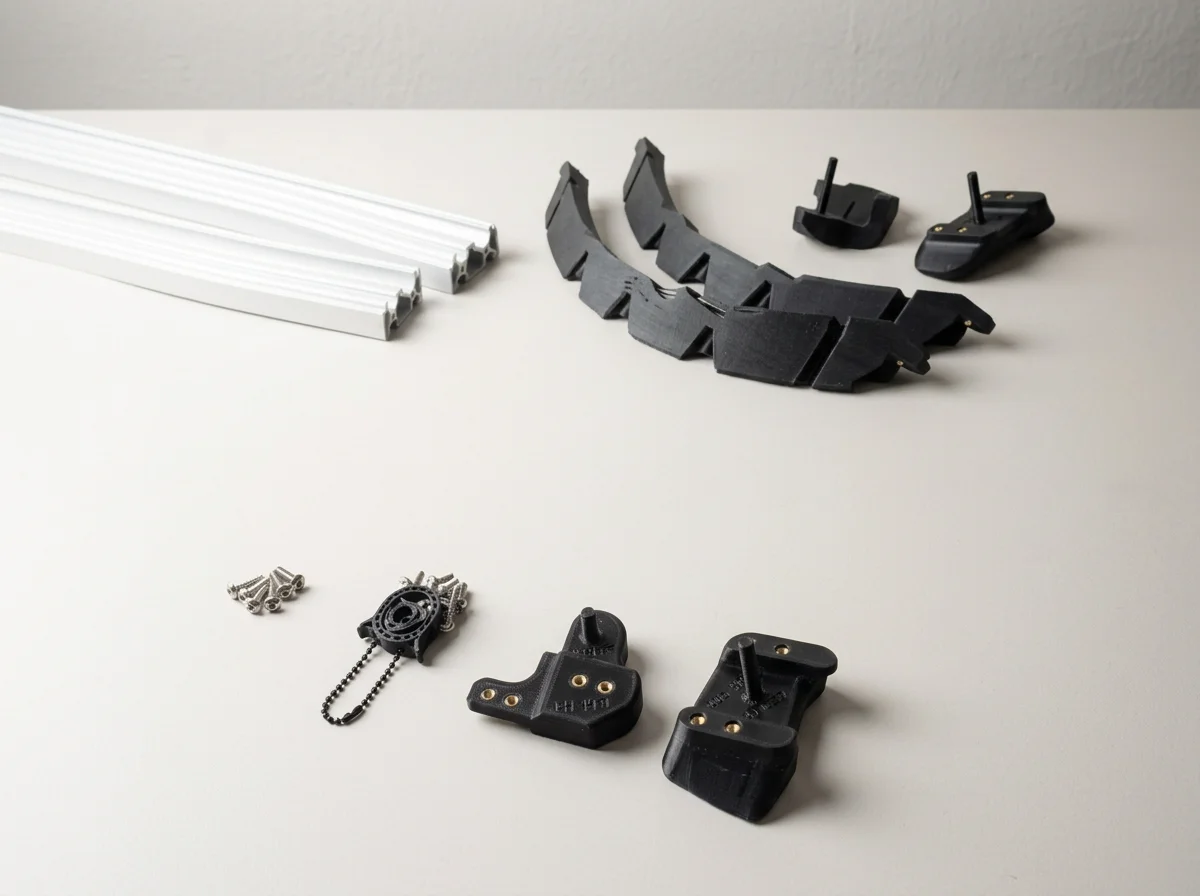

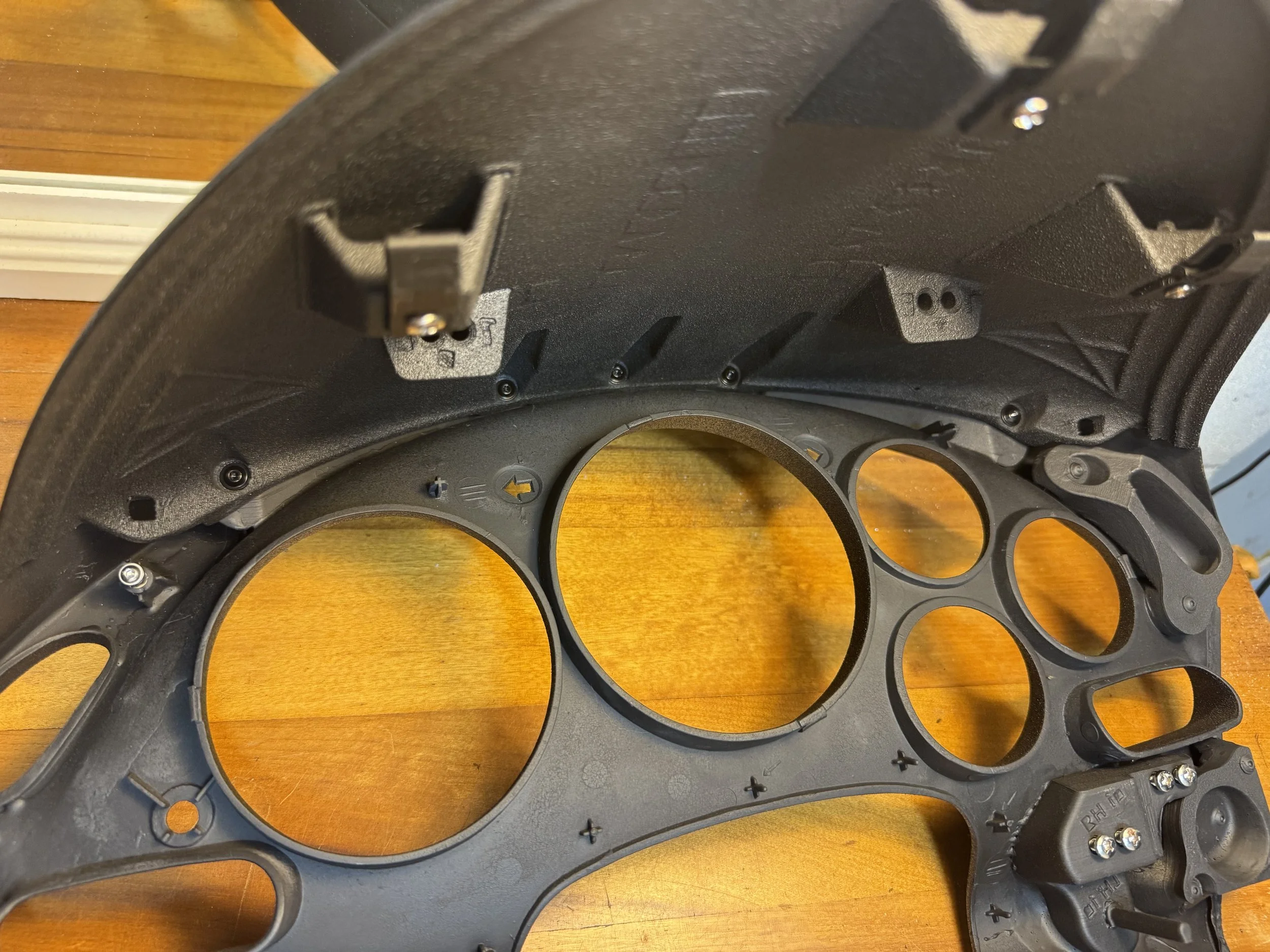

TOP Insert- Fixes the connection between the cluster and Meter Hood. includes 5 brass inserts, my MH Clips and Screws

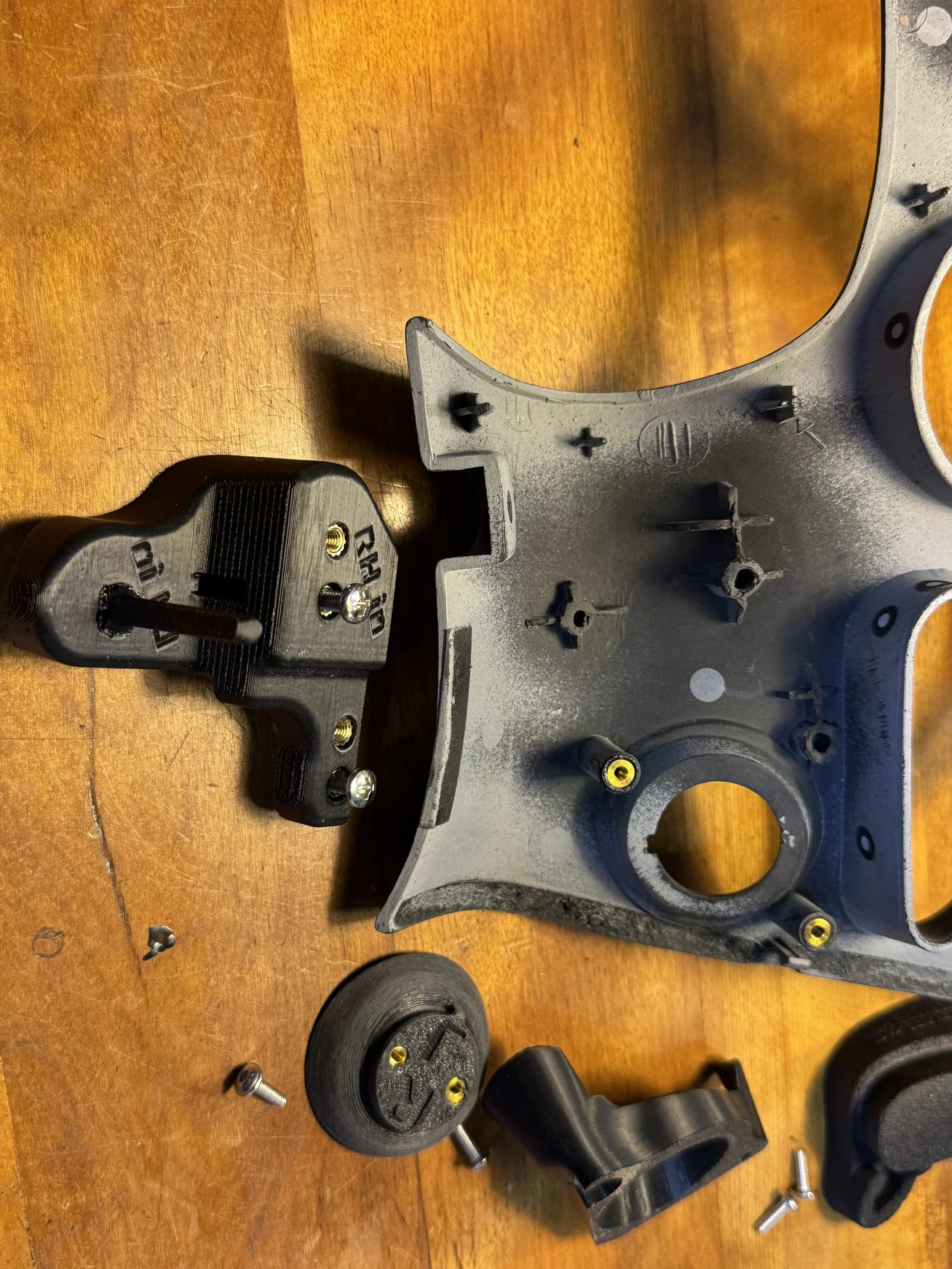

Bottom Inserts- replaces the dash mounting pads with the alignment pins at the bottom of the cluster, includes 7 brass inserts and screws

FDM Printed, ABS Material

****Modification to the OE Panel Required****

Ensure you have the proper LH or RH inserts for your application, I am not responsible for damage or modifications you make to your panel.

I am not responsible for the prep and bonding work on your panel. install at your own risk.

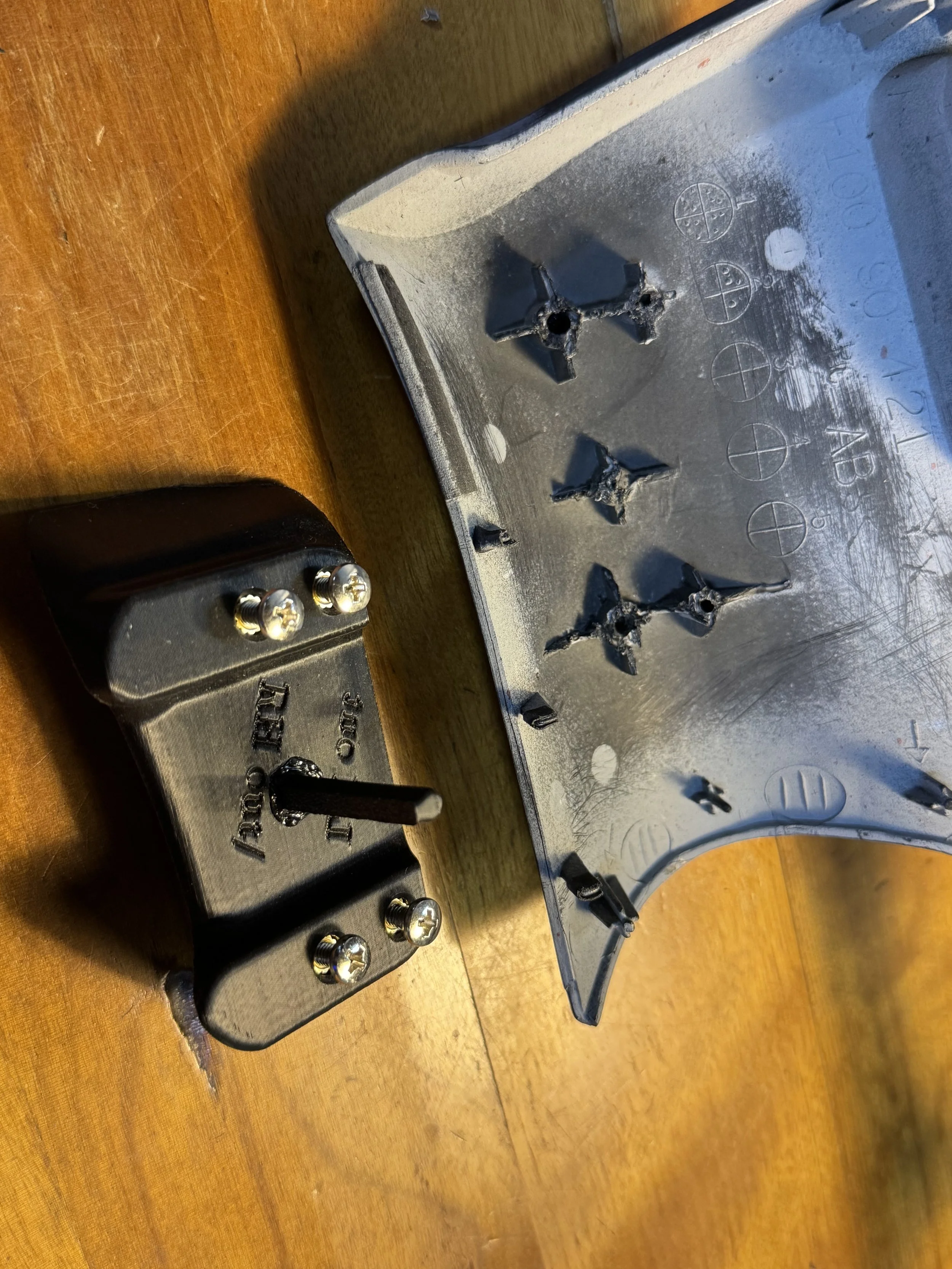

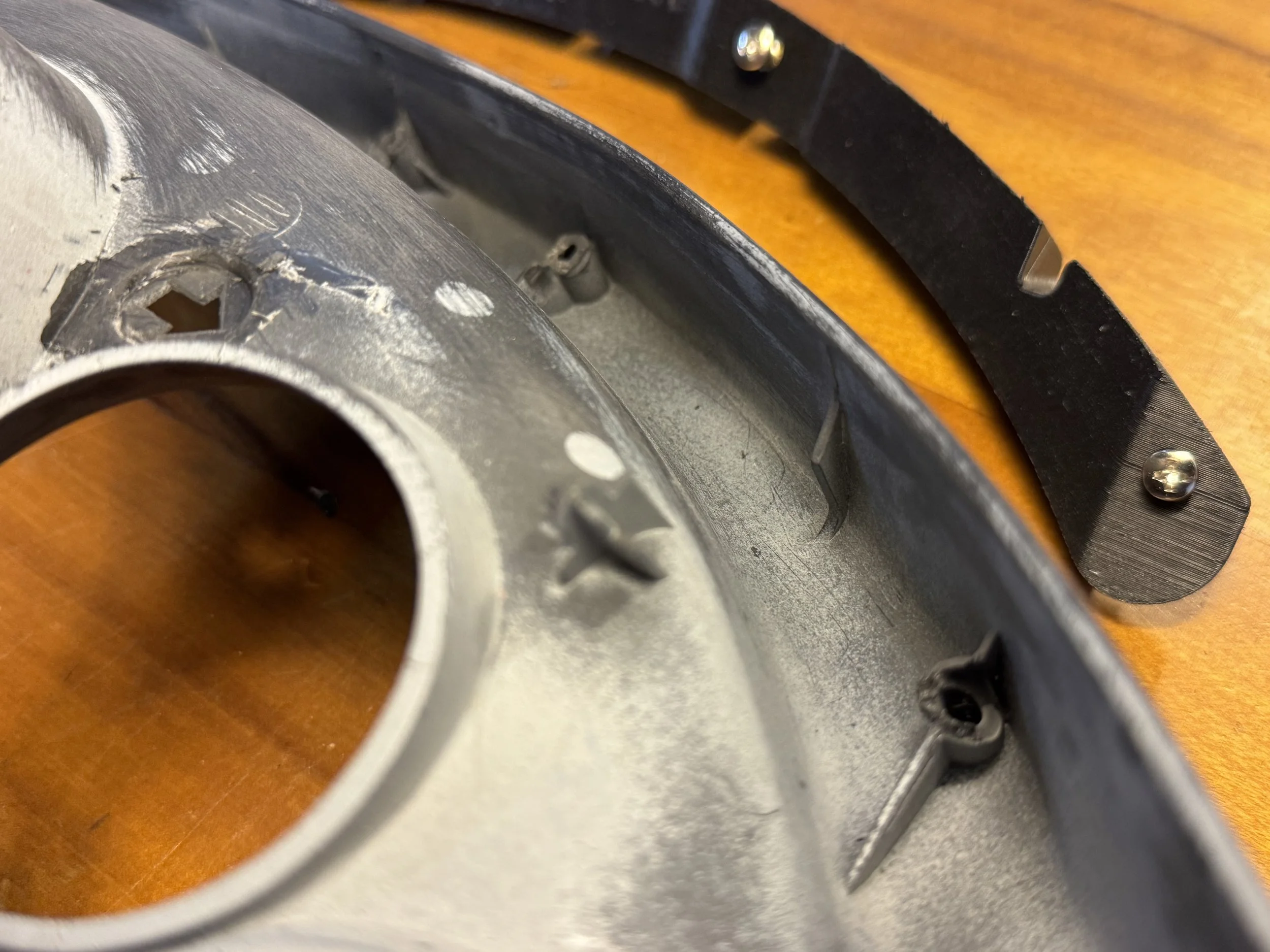

Trim back the broken injection molded tabs with some clippers or a dremel approximately 10mm, lightly sand and clean the area.

Test fitment of insert, and MH alignment BEFORE applying glue.

using ABS Glue or comparable solvent, adhere the Insert so that it sits flush against the panel.
Clamping may help maintain alignment of parts while the glue cures.

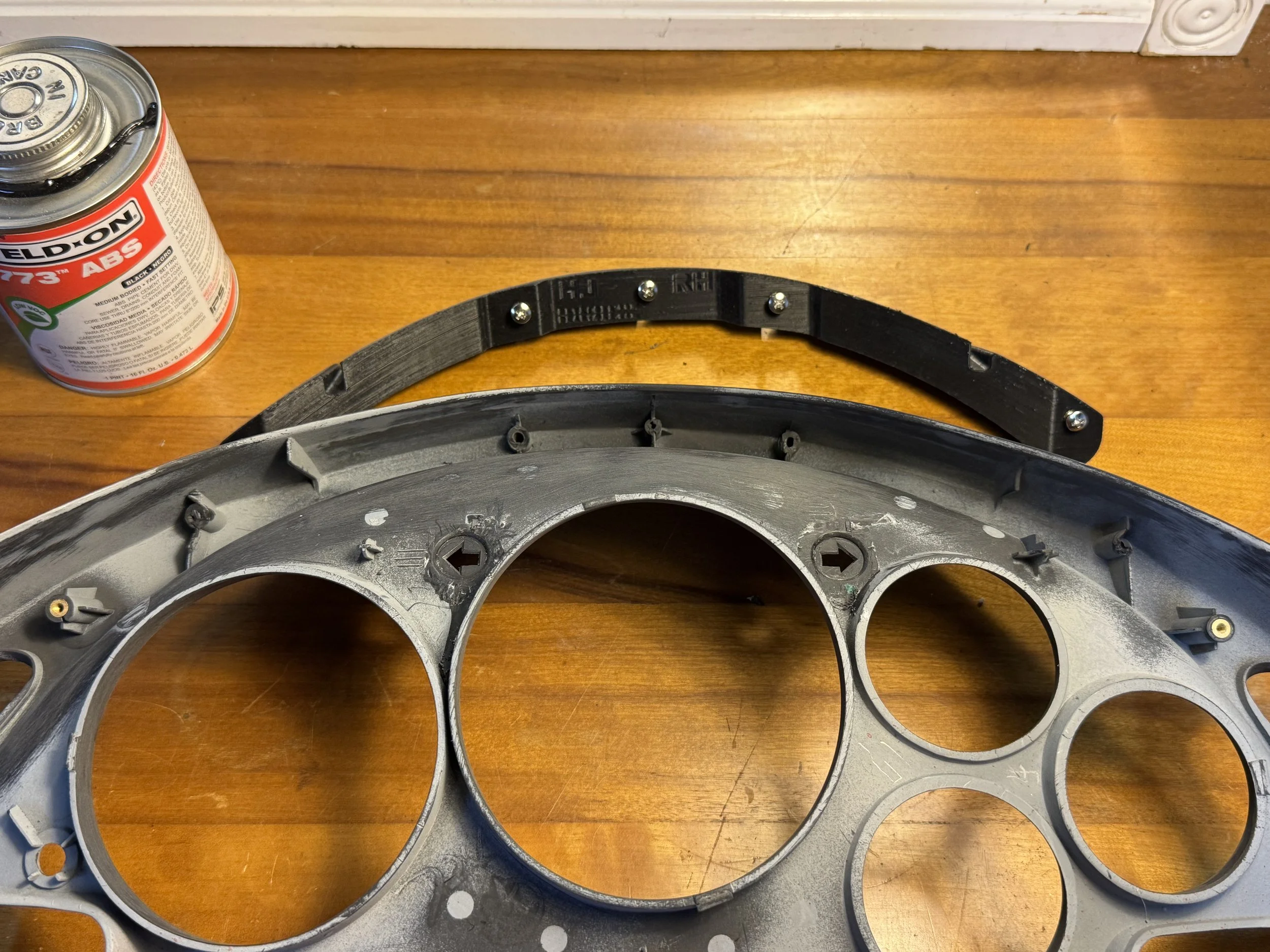

I recommend weldon 773, take your time and you shouldn’t have to refinish anything!
